When opening certain programs on a Windows client or server computer, the Call was canceled by the message filter with error code 0x80010002 may be triggered. In other cases, the same issue is encountered when a legacy application is called. This post provides the most applicable fixes to this issue.
Unexpected error occurred.

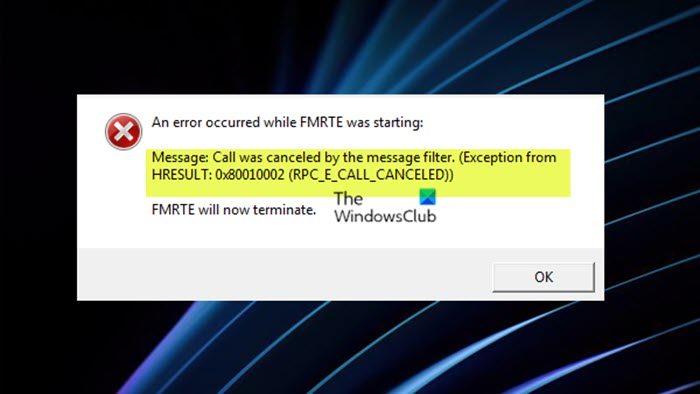

Call was canceled by the message filter. (Exception from HRESULT: 0x80010002 (RPC_E_CALL_CANCELED))
Call was canceled by the message filter, 0x80010002
If you get an error prompt stating Call was canceled by the message filter, 0x80010002 when you try to open an application or when the application is called on your Windows 11/10 computer, then the following suggested fixes we have presented below in no particular order should help you fix the error on your system.
- Check the Remote Procedure Call (RPC) service
- Restart the Windows Management Instrumentation (WMI) service
- Run WBEMTEST
- Re-register DLLs, Recompile the .mofs in the wbem folder, and Re-register WMI Service and Provider
- Repair/Rebuild Windows Management Instrumentation
- Temporarily disable or uninstall antivirus
- Run WBEMTEST
- Troubleshoot RPC errors using PortQry
- Convert Windows service component monitors from WMI to RPC
Let’s see the suggested fixes in detail. If your system hasn’t been updated in a while, before you proceed any further, we suggest you check for updates and install any available bits (including Optional Updates) on your system then see if the issue is resolved or not. Reinstalling the application throwing the error may also help.
1] Check the Remote Procedure Call (RPC) service
The RPCSS service is the Service Control Manager for COM and DCOM servers. It performs object activations requests, object exporter resolutions, and distributed garbage collection for COM and DCOM servers. If this service is stopped or disabled, programs using COM or DCOM will not function properly. Additionally, the RpcSs service uses the rpcss.dll file that is located in the C:\Windows\system32 directory. If the file is removed or corrupted, you may encounter this Call was canceled by the message filter, 0x80010002 error.
This solution requires you to check and make sure the Remote Procedure Call (RPC) (RpcSs) Service is started and set to Automatic startup which is the default configuration. To restore the default startup configuration of the service, run the Command Prompt as an administrator, then copy and paste the command below and hit Enter.
sc config RpcSs start= auto sc start RpcSs
Once the command executes, close the command window and restart the computer.
2] Restart the Windows Management Instrumentation (WMI) service
Windows Management Instrumentation (winmgmt) Service provides a common interface and object model to access management information about the operating systems, devices, applications, and services. If this service is stopped, most Windows-based software will not function properly. If this service is disabled, any services that explicitly depend on it will fail to start. Also, the winmgmt service is using the WMIsvc.dll file that is located in the C:\Windows\system32\wbem directory – if the file is removed or corrupted, you are likely to encounter issues with dependent services.
This solution requires you to ensure the winmgmt service is set to its default startup configuration on your target server by running the command below in an elevated CMD prompt. Restart the service if it’s already running.
sc config winmgmt start= auto sc start winmgmt
Read: WMI Provider Host (WmiPrvSE.exe) High CPU Usage
3] Run WBEMTEST
If you are unable to restart WMI as described above, you can run WBEMTEST locally to test WMI connectivity on the node. For this, refer to this Microsoft documentation.
4] Re-register DLLs, Recompile the .mofs in the wbem folder, and Re-register WMI Service and Provider
For this solution, you need to re-register all of the DLLs and recompile the .mofs in the wbem folder, and re-register WMI Service and Provider. To perform this task, you need to create and run a batch file by following these steps:
- Press Windows key + R to invoke the Run dialog.
- In the Run dialog box, type notepad and hit Enter to open Notepad.
- Copy and paste the syntax below into the text editor.
@echo off
sc config winmgmt start= disabled
net stop winmgmt /y
%systemdrive%
cd %windir%\system32\wbem
for /f %%s in ('dir /b *.dll') do regsvr32 /s %%s
wmiprvse /regserver
winmgmt /regserver
sc config winmgmt start= auto
net start winmgmt
for /f %%s in ('dir /s /b *.mof *.mfl') do mofcomp %%s
- Save the file with a name and append the .bat file extension – eg; Re-registerWMI.bat; on the Save as type box, select All Files.
- Now, run the batch file with admin privilege (right-click the saved file and select Run as Administrator from the context menu) or simply double-click the .bat file to run it.
- Once the batch file runs, you can delete it.
- Reboot the machine and test WMI.
5] Repair/Rebuild Windows Management Instrumentation
You can quickly repair or rebuild WMI on a local machine or server (as the case may be) by creating a batch file as shown above with the source code below or you can follow the step-by-step instructions provided in the linked guide.
Echo Rebuilding WMI.....Please wait. > c:\wmirebuild.log
net stop sharedaccess >> c:\wmirebuild.log
net stop winmgmt /y >> c:\wmirebuild.log
cd C:\WINDOWS\system32\wbem >> c:\wmirebuild.log
del /Q Repository >> c:\wmirebuild.log
c:
cd c:\windows\system32\wbem >> c:\wmirebuild.log
rd /S /Q repository >> c:\wmirebuild.log
regsvr32 /s %systemroot%\system32\scecli.dll >> c:\wmirebuild.log
regsvr32 /s %systemroot%\system32\userenv.dll >> c:\wmirebuild.log
mofcomp cimwin32.mof >> c:\wmirebuild.log
mofcomp cimwin32.mfl >> c:\wmirebuild.log
mofcomp rsop.mof >> c:\wmirebuild.log
mofcomp rsop.mfl >> c:\wmirebuild.log
for /f %%s in ('dir /b /s *.dll') do regsvr32 /s %%s >> c:\wmirebuild.log
for /f %%s in ('dir /b *.mof') do mofcomp %%s >> c:\wmirebuild.log
for /f %%s in ('dir /b *.mfl') do mofcomp %%s >> c:\wmirebuild.log
mofcomp exwmi.mof >> c:\wmirebuild.log
mofcomp -n:root\cimv2\applications\exchange wbemcons.mof >> c:\wmirebuild.log
mofcomp -n:root\cimv2\applications\exchange smtpcons.mof >> c:\wmirebuild.log
mofcomp exmgmt.mof >> c:\wmirebuild.log
net stop winmgmt >> c:\wmirebuild.log
net start winmgmt >> c:\wmirebuild.log
gpupdate /force >> c:\wmirebuild.log
Read: WMI Repository reset failed, Error 0x80070005, 0x8007041B, 0x80041003
6] Temporarily disable or uninstall antivirus
There is probably either security/antivirus software causing problems on the server, the WMI/DCOM configuration is bad, or the WMI repo is damaged. So, if the issue persists after you have applied the solutions 1, 2, 4, and 5 mentioned above, you can try uninstalling any antivirus software, disabling the Windows firewall, or any third-party dedicated firewall, and see if that helps.
7] Troubleshoot RPC errors using PortQry
PortQry provides quick insight into how RPC is functioning before you delve into network trace data. As the exception being thrown references RPC, you can troubleshoot RPC errors using PortQry.exe commands to quickly determine whether you can make a connection on the client or server computer as the case may be.
8] Convert Windows service component monitors from WMI to RPC
This fix applies to SolarWinds users that encountered the issue and received the error message in the web console. This potential workaround can help resolve the issue without drastic steps such as rebuilding performance counters or rebuilding the WMI repository — instead convert Windows service component monitors from WMI to RPC by following these steps:
- Browse to the SAM Summary page in the Orion web console.
- Edit the application template that has the windows service component.
- Expand the Windows Service component.
- Change from WMI to RPC method.
- Save.
To change all possible Windows Service Monitors to the RPC method across all your applications, you can use the SQL Script available at support.solarwinds.com to convert all existing Windows service component monitors fetching methods from WMI to RPC.
I hope this post helps!
How do I fix error code 0xc8000402?
Reportedly, the error code 0xc8000402 will most likely be encountered by Windows Insiders running Windows 10 who join the Dev or Beta Channels while trying to download the latest build on their device. If you’re affected by this, as a workaround, you can join the Release Preview Channel first, and then install Windows 11 from there.
What is Unsuccessful 0x80070002?
The error 0x80070002 in SCCM deployment means The system cannot find the file specified. In another instance, the error 0x80070002 is a Windows update error that can result from corrupt or missing system files. Also, if the system doesn’t have enough space to download the update, you may encounter this error. The problem can also appear due to conflict between hardware devices attached to the system.
