Peer to Peer Networking (P2P) and File Sharing explained

Computer networks are of two types. One is the Client server model where all computers are connected to a server computer that facilitates file sharing. The other type of computer network is Peer to Peer. Peer to peer means the absence of a dedicated server. As the name suggests, they are connected as peers – directly to each other instead of having to connect to a server. This article explains peer-to-peer file sharing over wired networks and the Internet.

What are Peer to Peer (P2P) Networks

When it comes to the term peer-to-peer network, also known as P2P networks, a picture appears – of a couple of computers connected directly to each other. They can be connected via USB or via Ethernet cables. Suppose there are three computers A, B, and C, if A connects to B and B connects to C, the users of A can easily access files and printers connected to C, provided the computer C allows for file and printer sharing. It is just like the Homegroup network in Windows operating system.

In a peer-to-peer (P2P) network, a computer is both a client and a server simultaneously. It is a client because it asks for data or any other service from a different computer to which, it is connected. It is a server because it provides access to the files on its hard disk, the peripherals connected to it, and other connected computers.

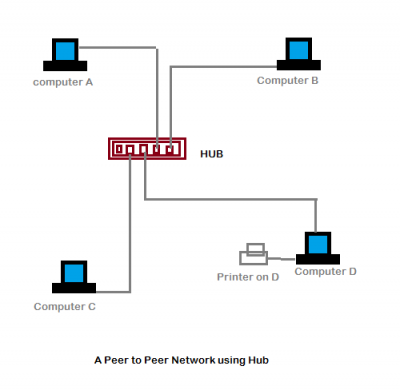

A peer-to-peer network can also be implemented using a hub, which means you do not need extra Ethernet cards to enable file and printer sharing. A hub could ideally be a router with more than one LAN port or a USB hub. See the image below for how it looks.

File Sharing Over Peer To Peer Networks

Peer-to-peer networks can be implemented locally or via the use of the Internet. In the latter case, computers are not connected using Ethernet cables. Rather, they use normal Internet connections to connect. If you have been using BitTorrents, you have been part of such a peer-to-peer network. File sharing in both types of P2P networks happens almost in the same way. Let us take a look at normal P2P home networks first.

Read: What are Torrent files.

In Windows-based P2P networks, the Public folders are already shared. They are visible under My Network. If not, go to each computer and share the files and peripherals you wish to share.

You can select which folders to share by right-clicking on the folder and going to the Share tab. The Share tab may be named differently in different versions of Windows. You enable folder sharing by ticking the check box. In the drop-down list that appears on the share tab, select Everyone. You can also select computers from the drop-down list on the Share tab and click Share to share a folder with select computers.

In short, the process of file and folder sharing in wired peer-to-peer networks is easier than you think. The computers are connected as soon as you connect them to the hub.

File Transfering via P2P on the Internet

This is where BitTorrent comes in. The protocol, BitTorrent, is used to download large files from the Internet. In the case of BitTorrent, as soon as you initiate a download, your computer becomes a part of the Peer to Peer network on the Internet.

To be clear, a large file is not hosted on a single computer when it is available for download via BitTorrent. It is spread over multiple computers in form of different parts. When you use a .torrent file to download a file, you connect to more than one computer, and your BitTorrent client downloads different segments from different computers that form a swarm (or a group of computers related to that download).

Your computer, too, is a part of that swarm as long as you are downloading, as it establishes a direct connection to different computers using the Internet. Also, as long as your BitTorrent client is running, it is seeding, i.e., uploading parts of the downloaded file to the Internet so that others who are trying to download the file at the same time, may download it from whatever your BitTorrent client is uploading. This is in addition to the peers (computers hosting parts of the download, connected directly, without the need for a server in the middle) from where the other user is receiving the file.

This explains Peer to Peer networking and file or printer sharing in layman’s language.
